Technical Design & Direction

Theatrical Drafting Standards

"a study and practicum of theatrical drawings as they apply to design and construction for scenery for a theatrical production"

HOME
BACK

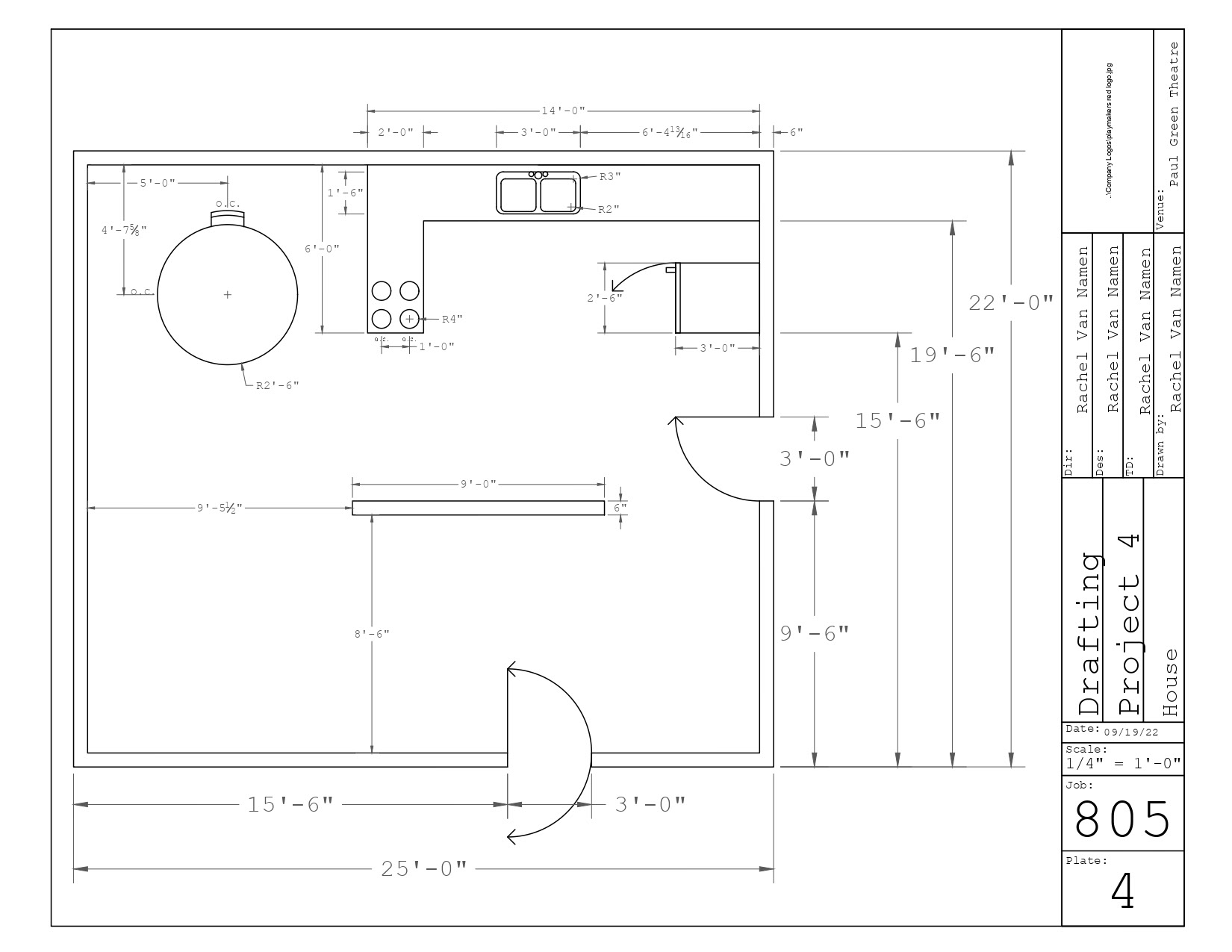

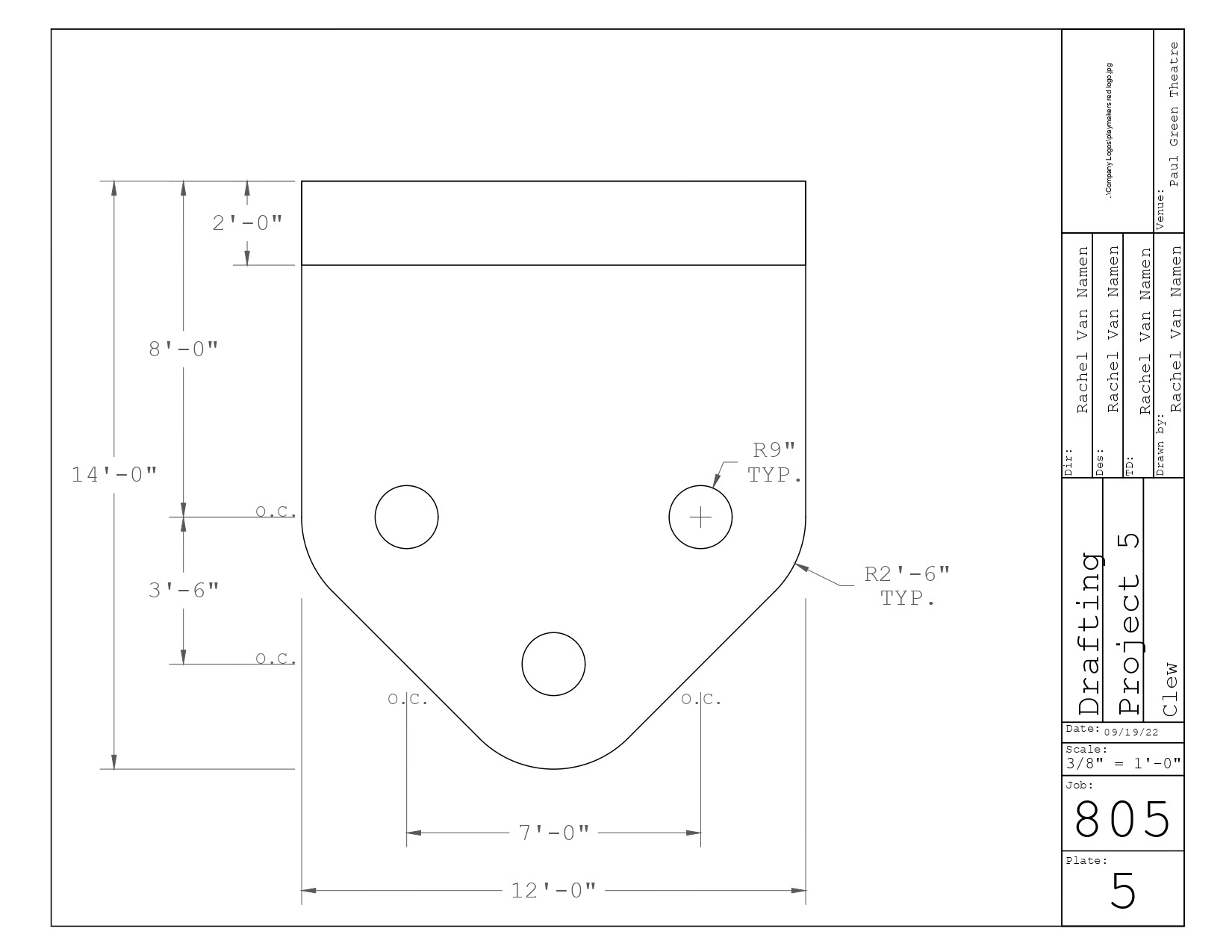

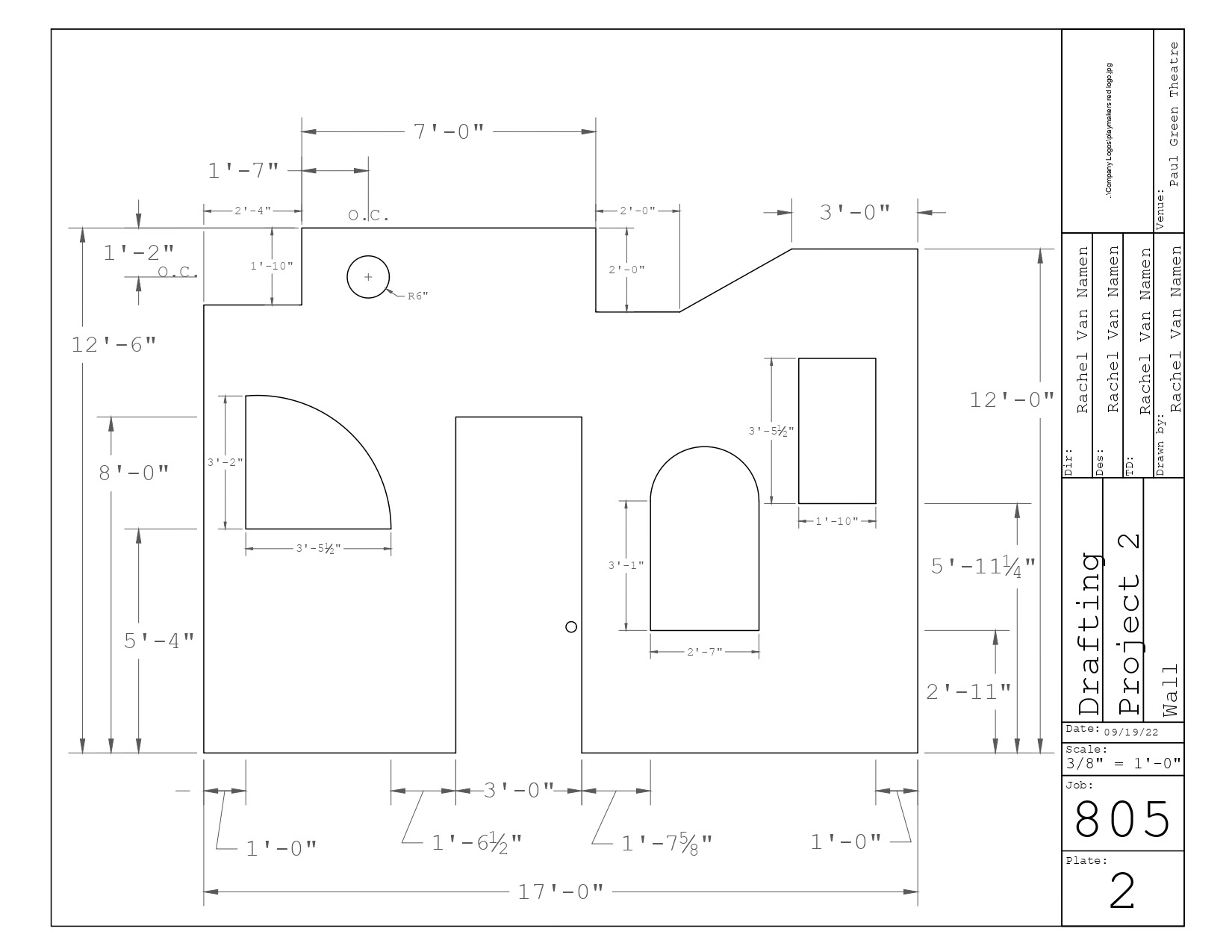

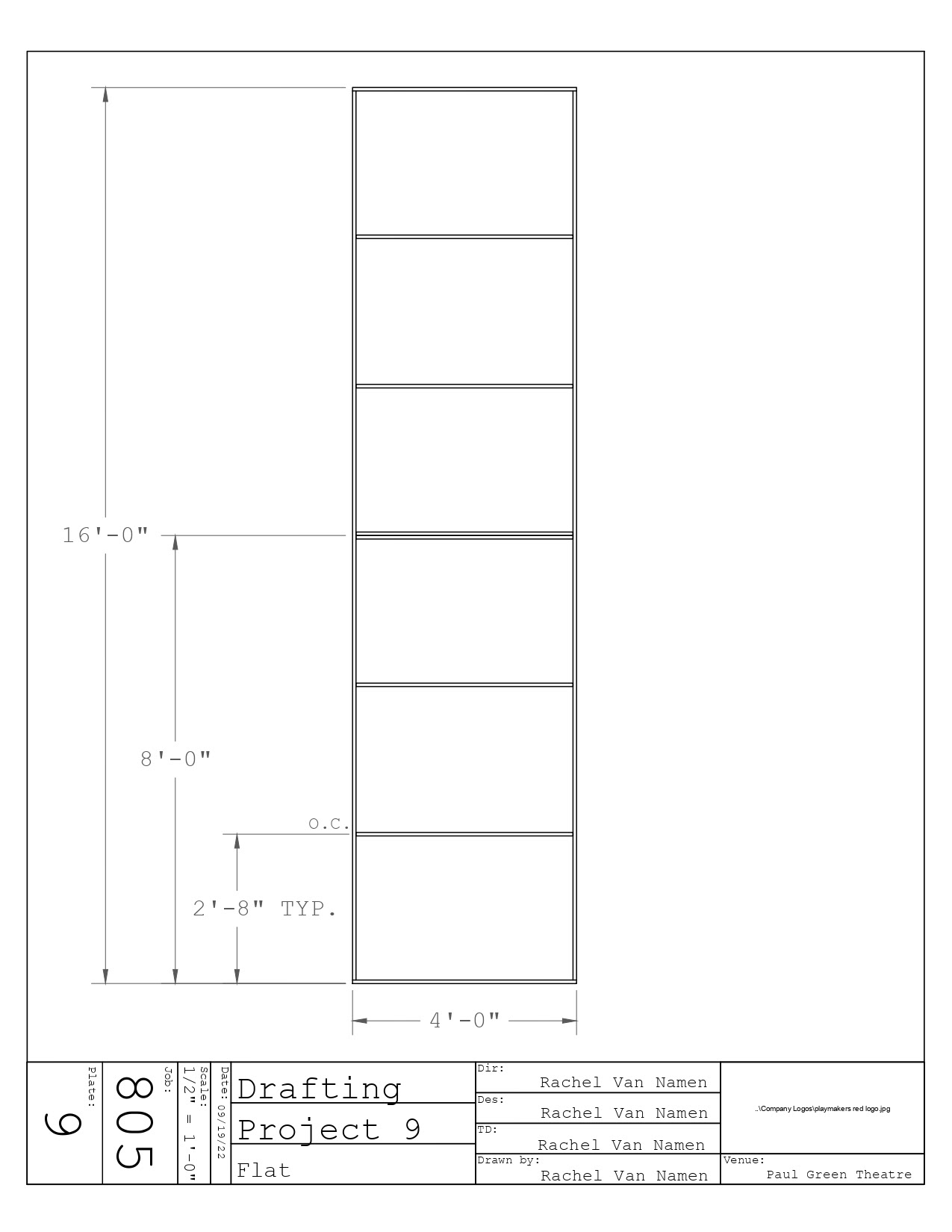

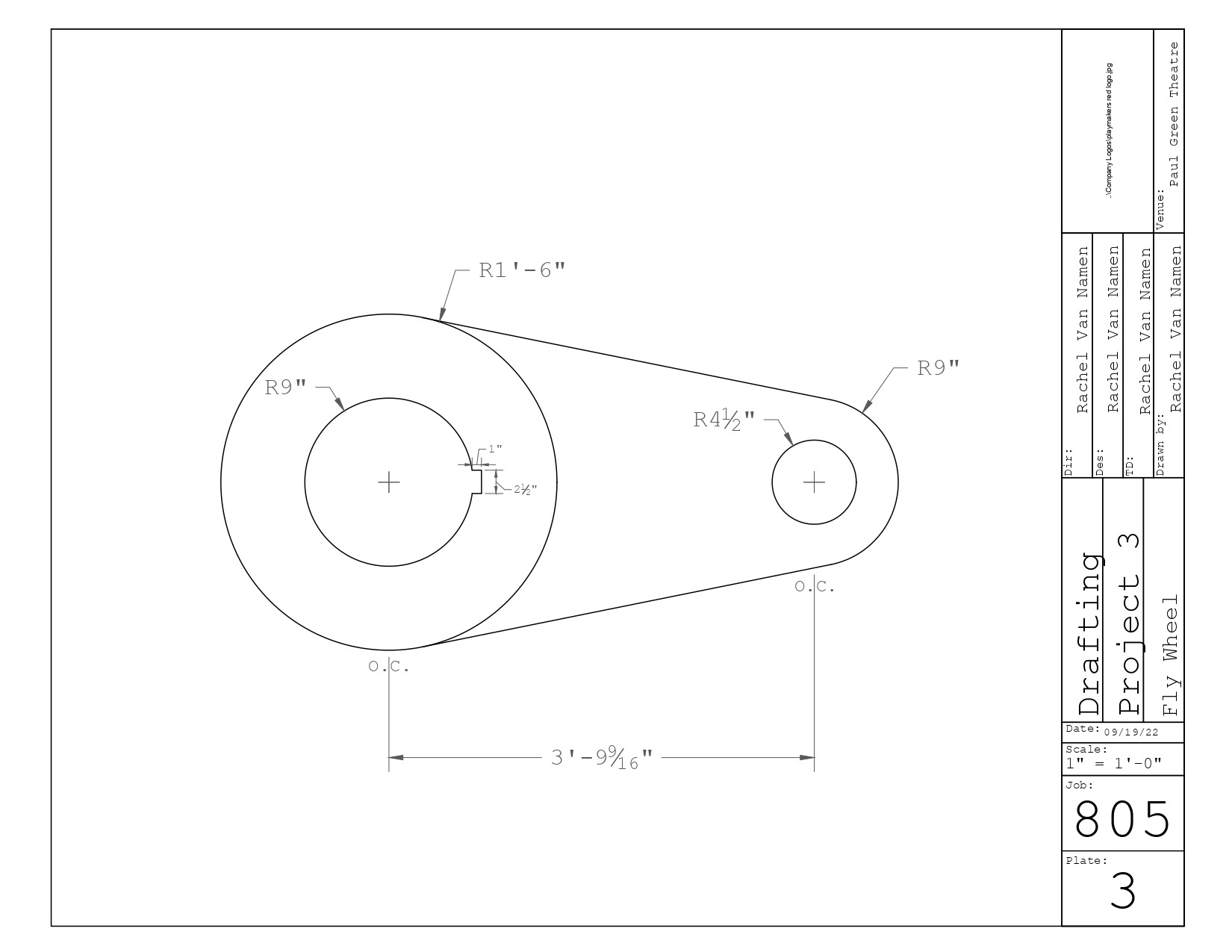

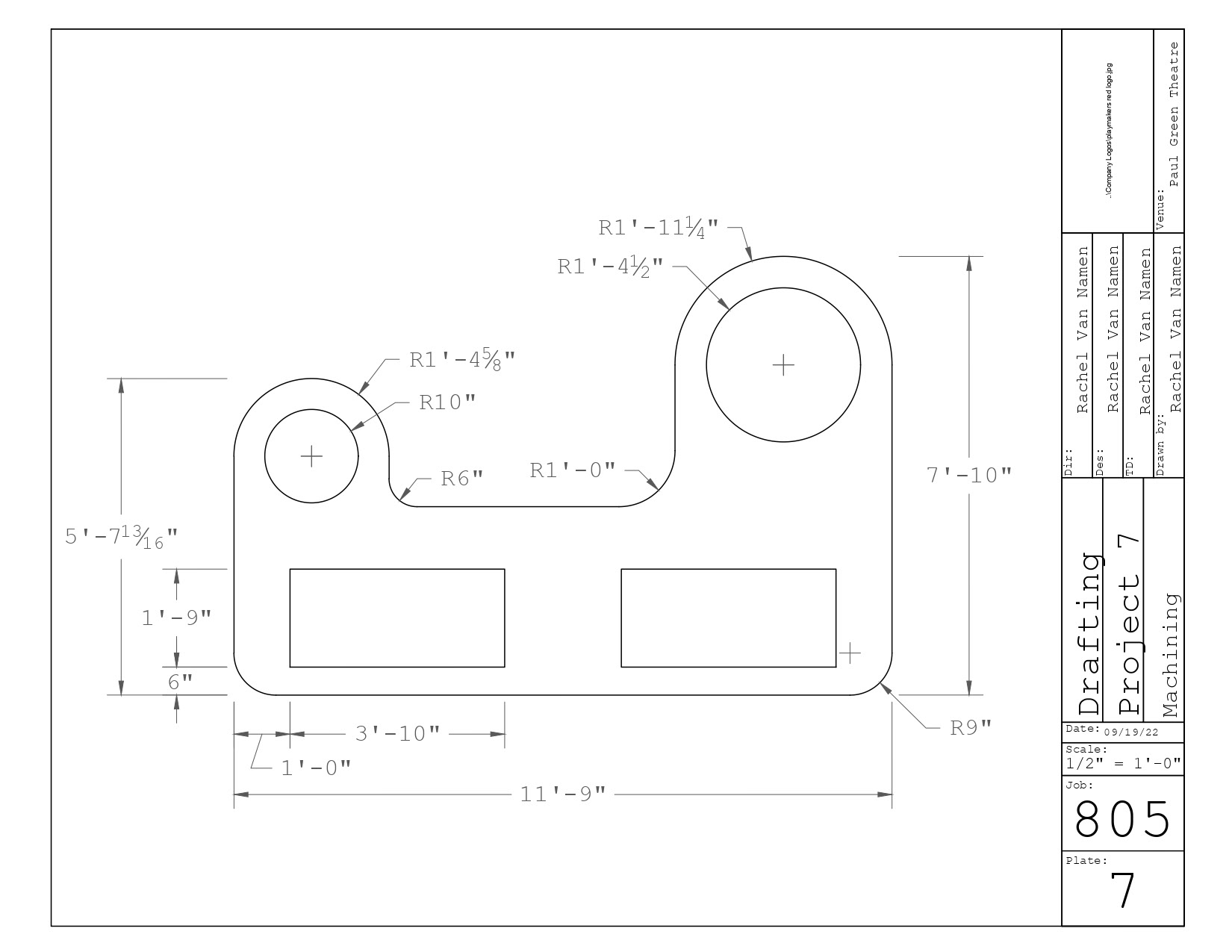

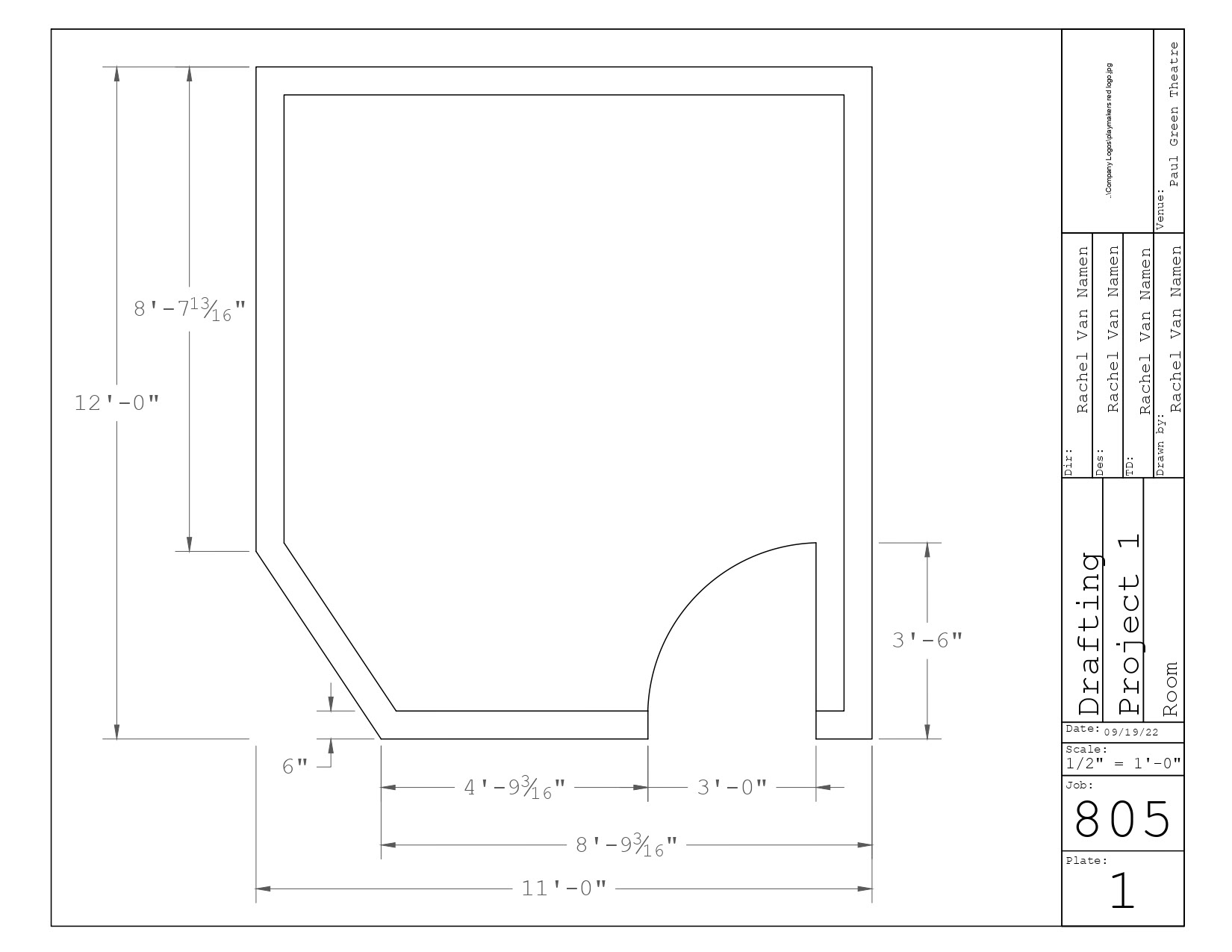

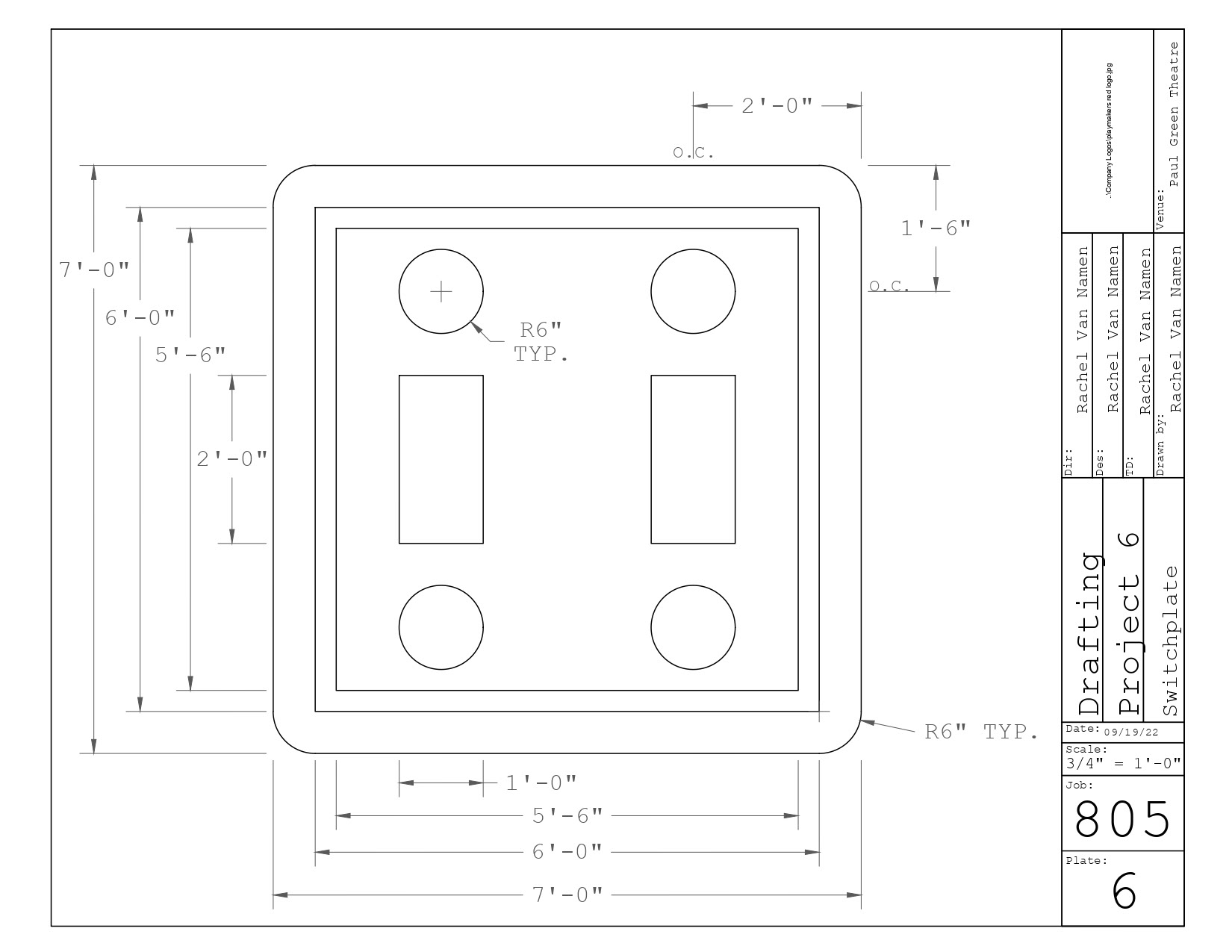

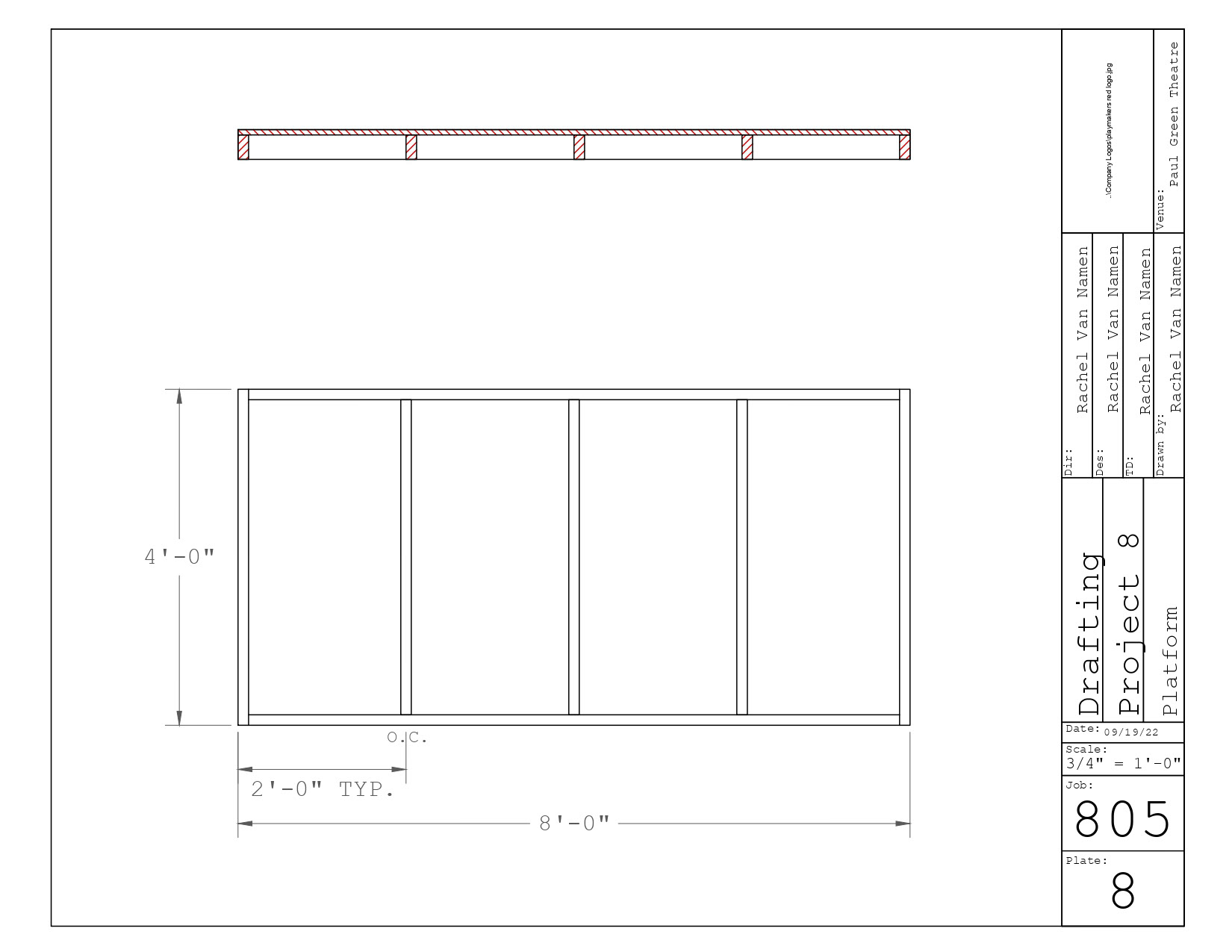

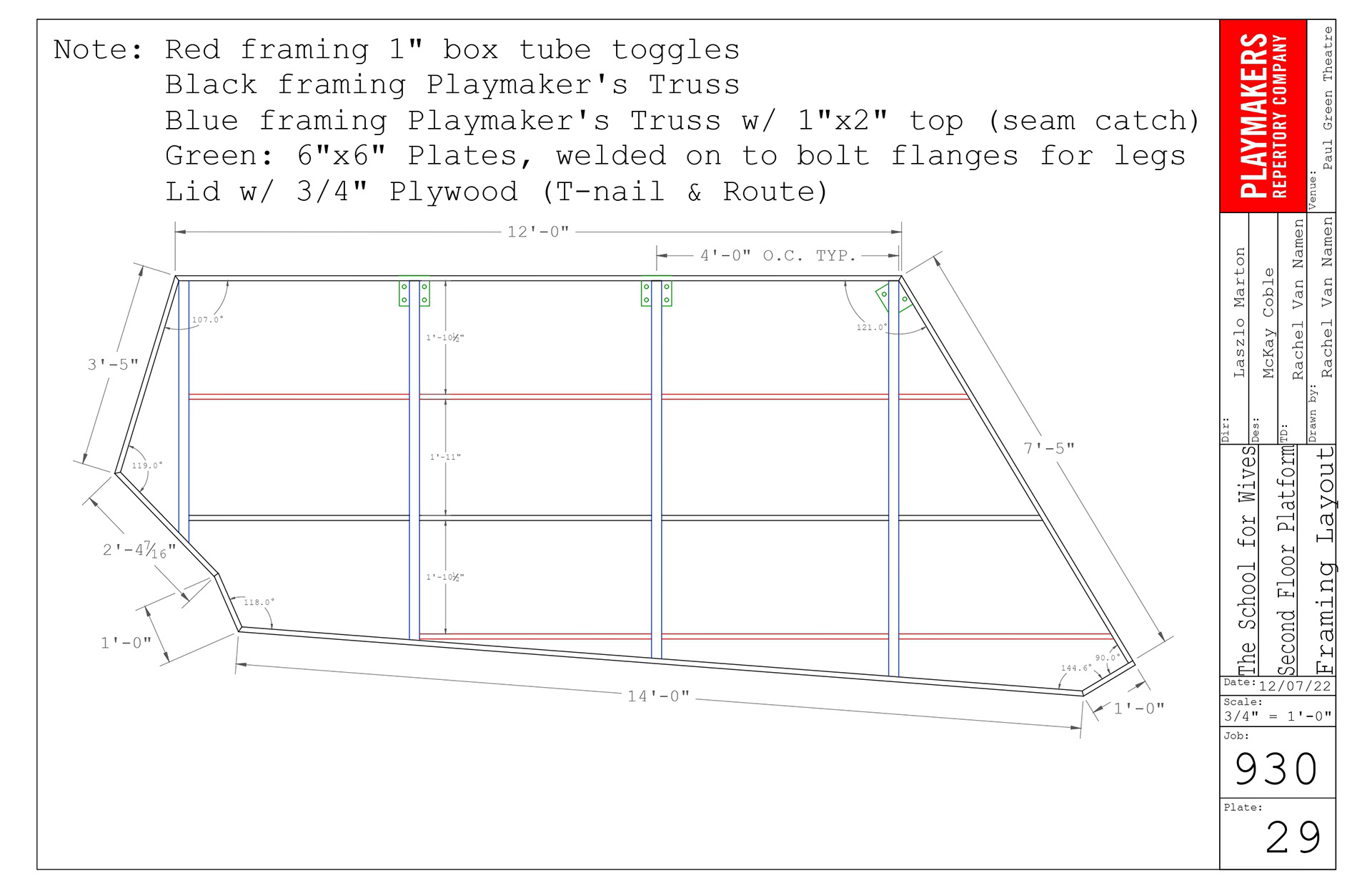

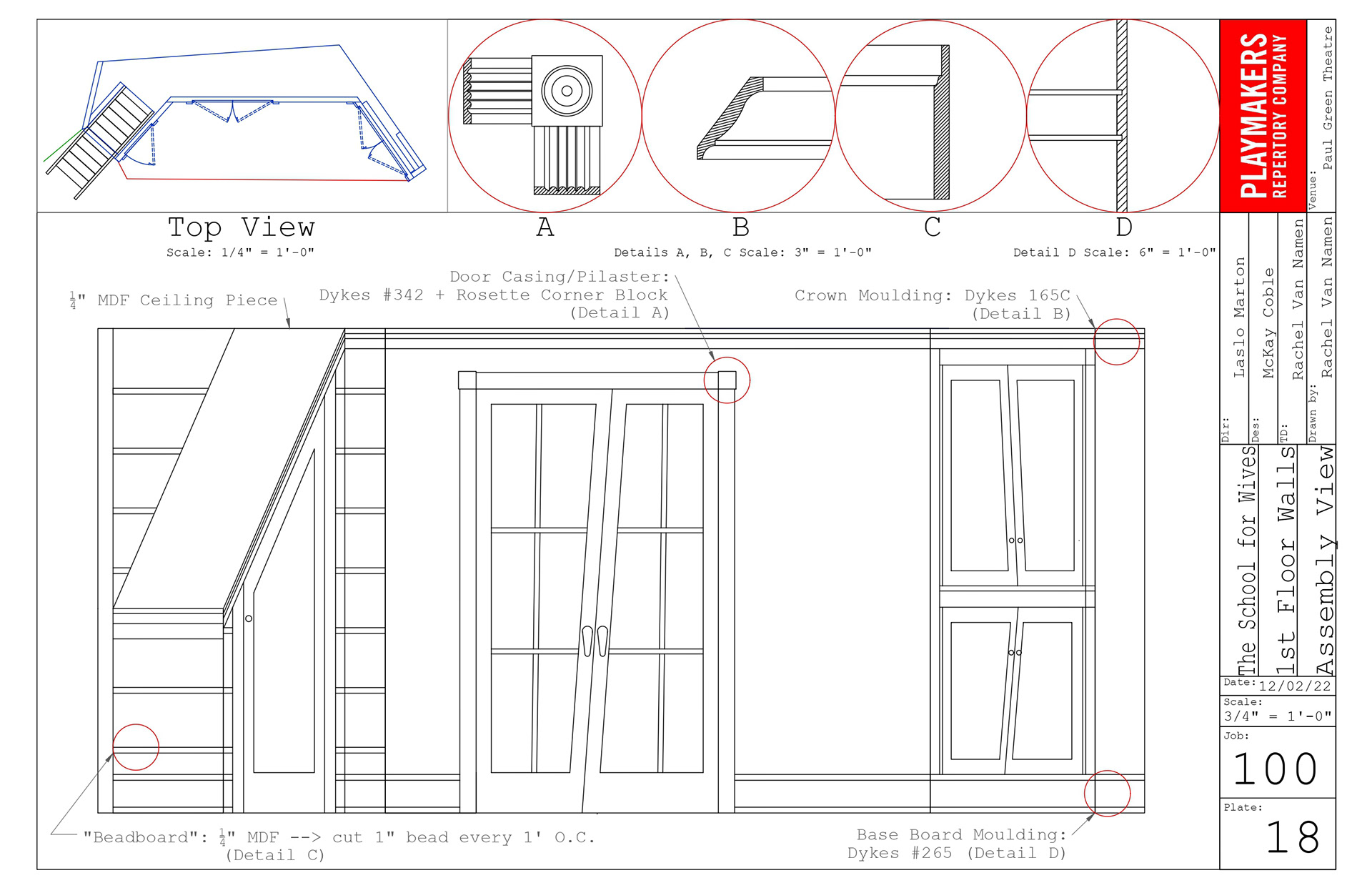

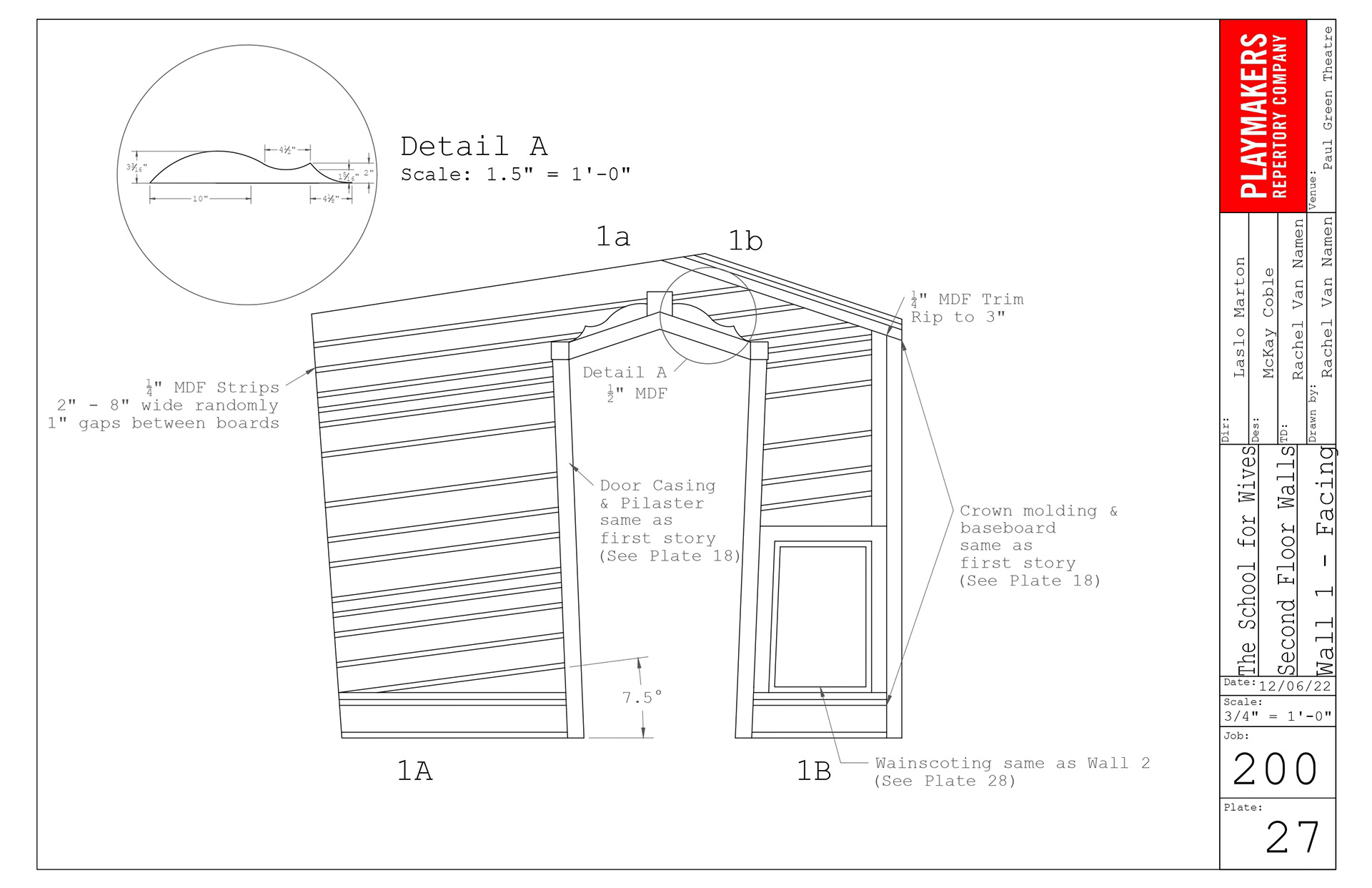

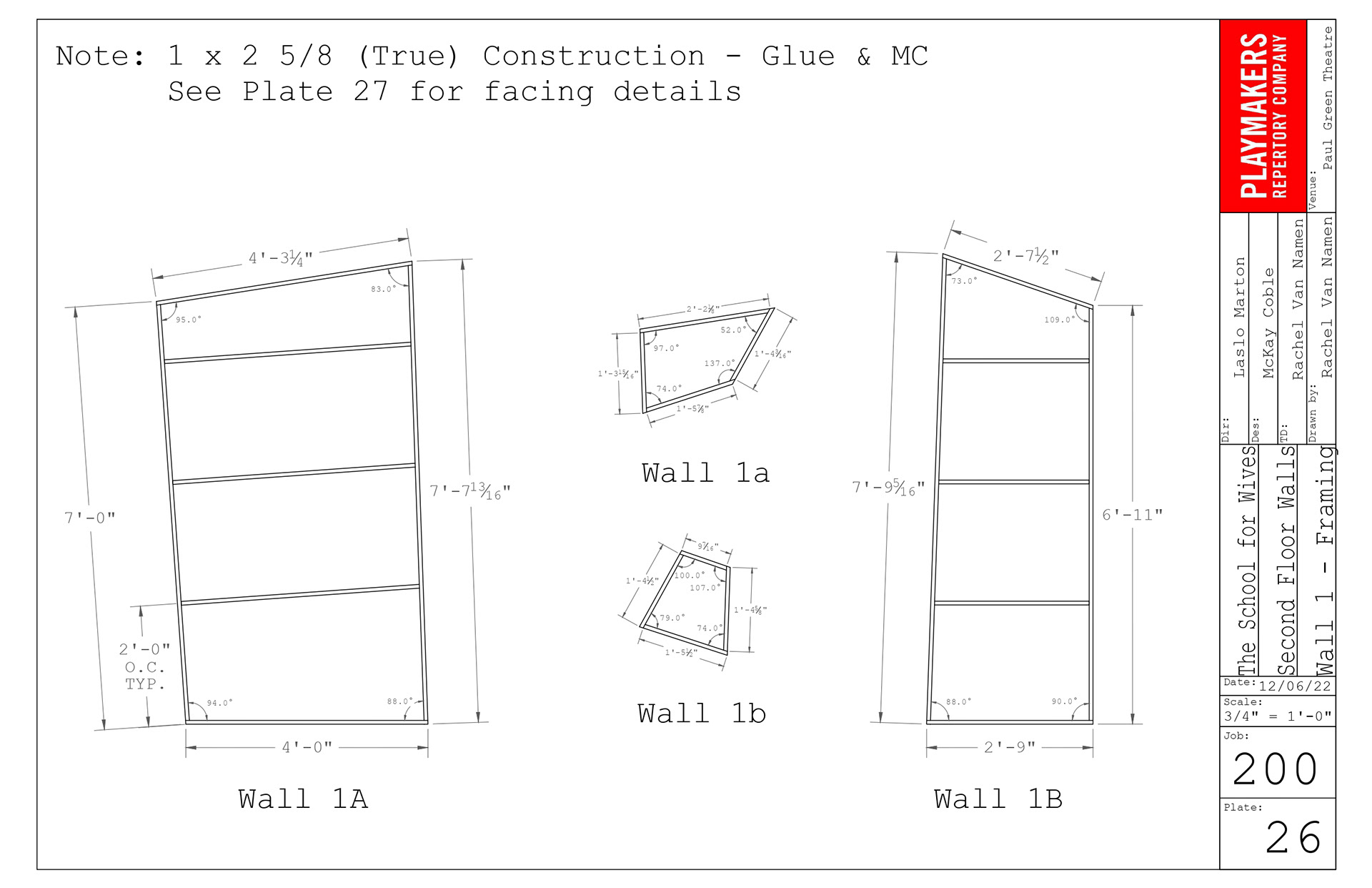

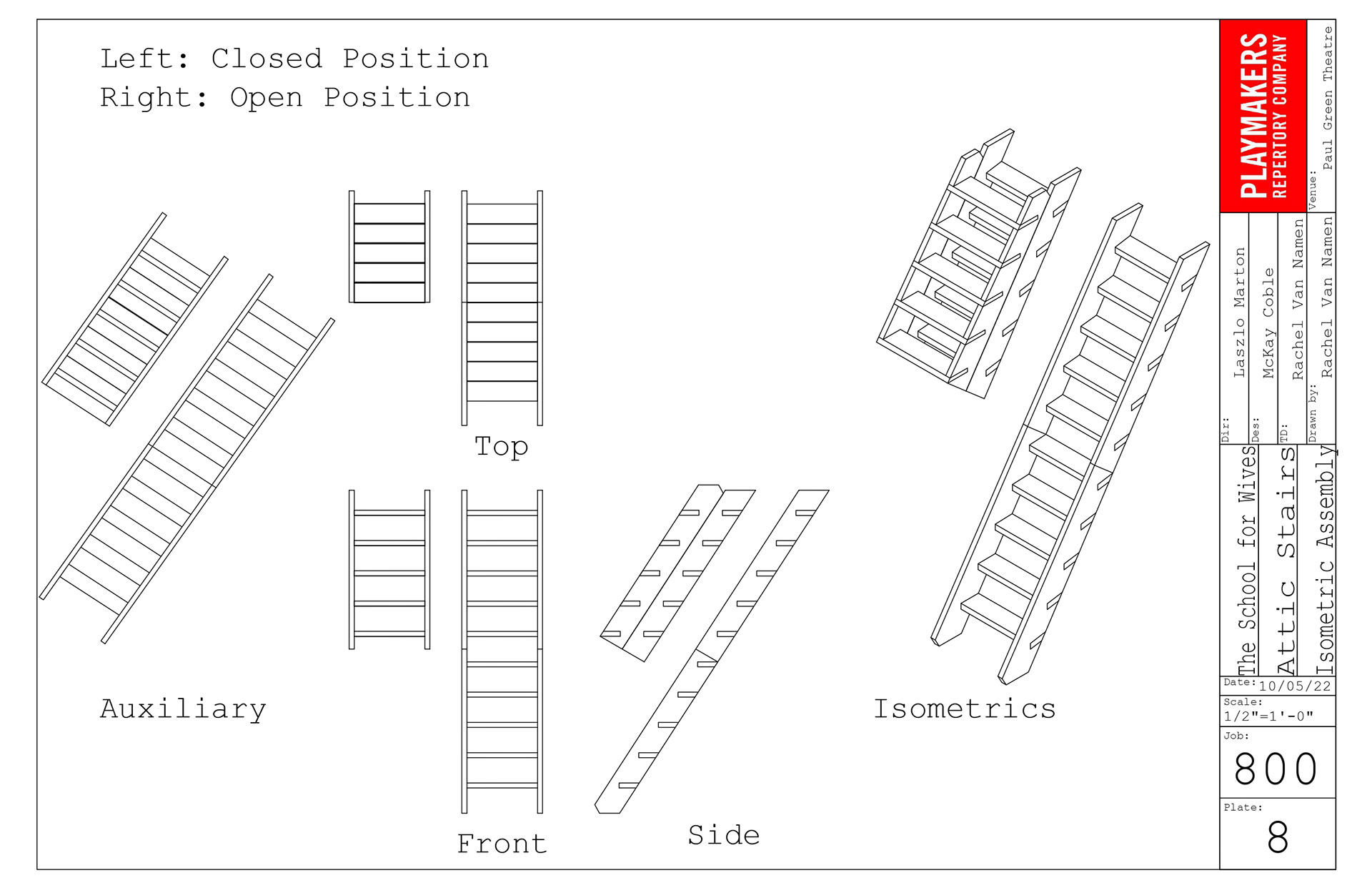

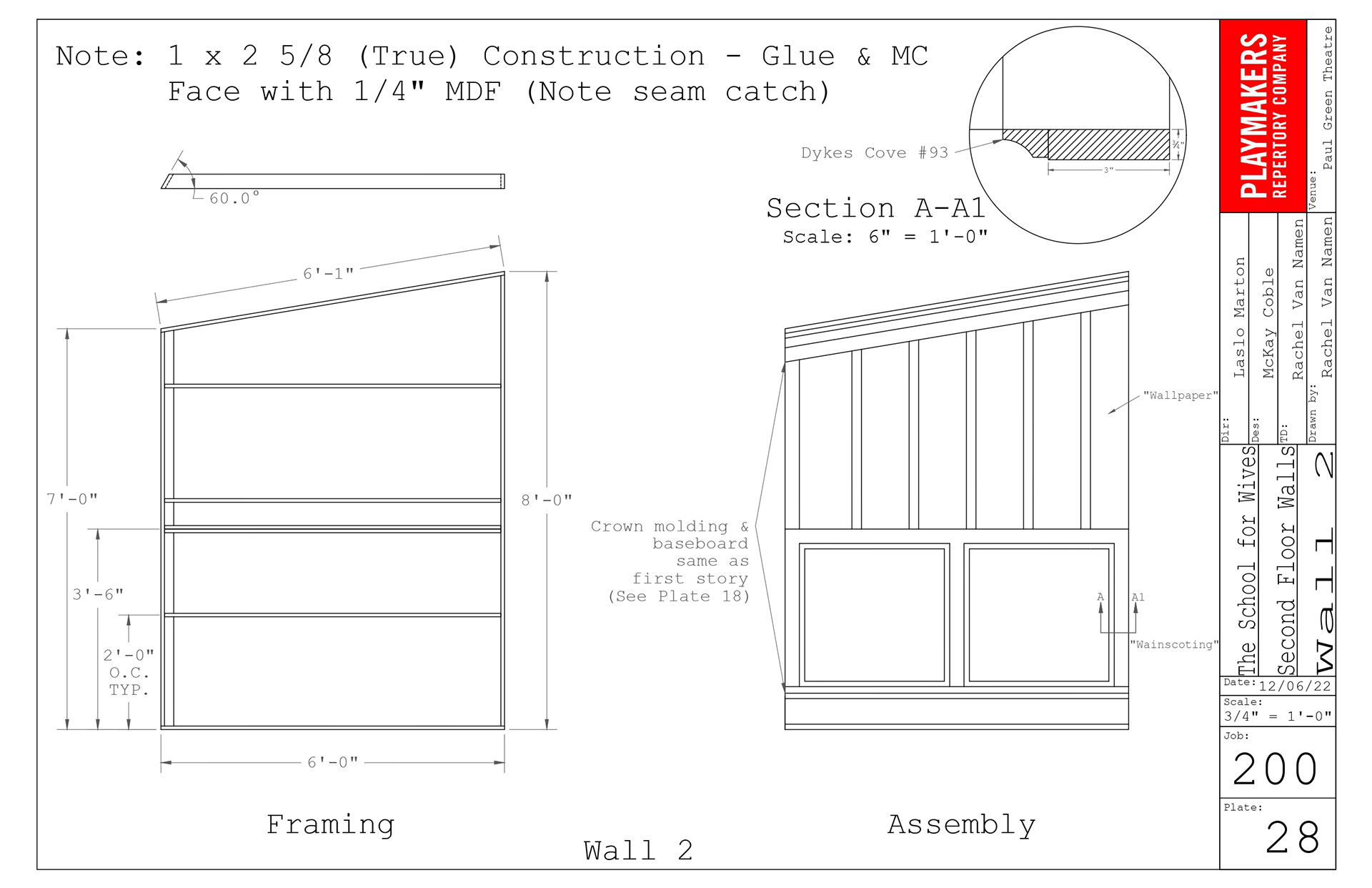

Final Project: The School for Wives
Take a set of designer drawings from our archives & create a full drafting packet (all units construction & load-in plates + designer & SM groundplans)
Download Full Drafting Packet
In Class Exercises
Orthographic Projections

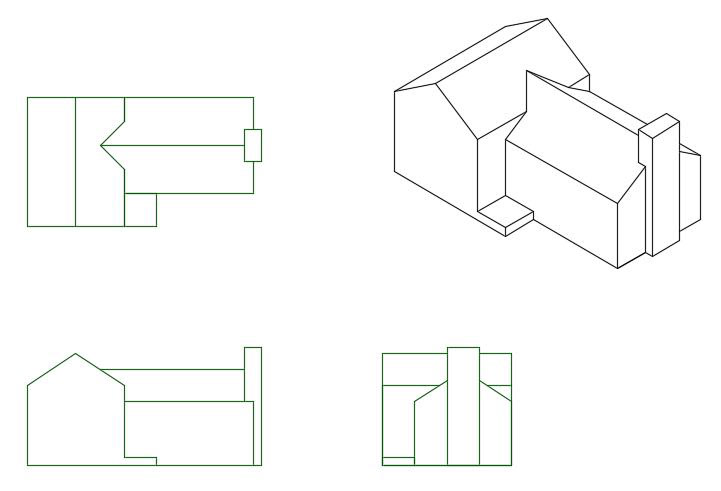

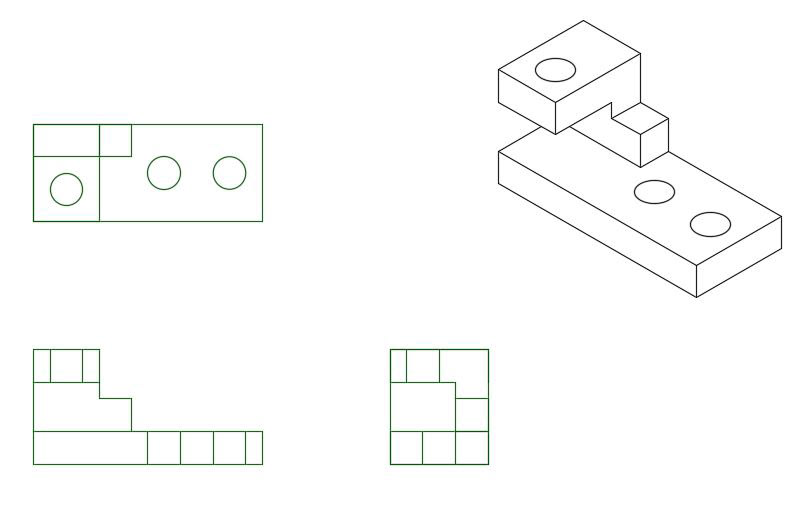

Supplied the Isometric: Construct Top, Front, & Side Views

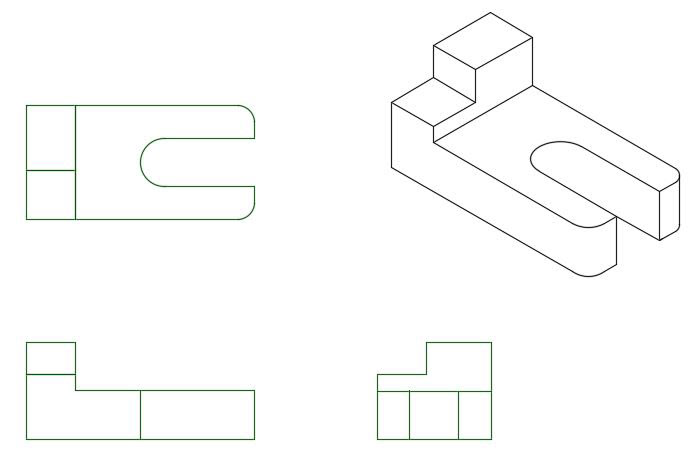

Supplied the Isometric: Construct Top, Front, & Side Views
Supplied the Isometric: Construct Top, Front, & Side Views
Supplied the Isometric: Construct Top, Front, & Side Views
Supplied the Isometric: Construct Top, Front, & Side Views
Supplied the Isometric: Construct Top, Front, & Side Views

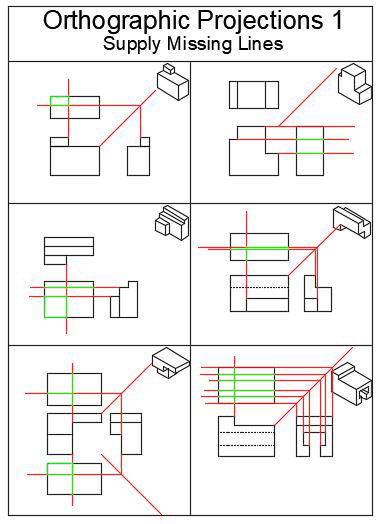

Supplied Objects/Lines in Black: Drew Layout Lines in Red & Missing Lines in Green
Supplied Objects/Lines in Black: Drew Layout Lines in Red & Missing Lines in Green

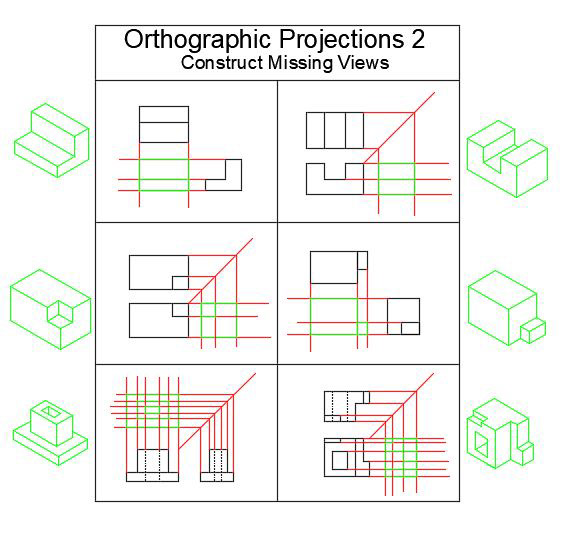

Supplied Objects/Lines in Black: Drew Layout Lines in Red & Missing Views in Green
Supplied Objects/Lines in Black: Drew Layout Lines in Red & Missing Views in Green
