Rachel Van Namen
MUCH ADO ABOUT NOTHING
Assistant Technical Director
Playmakers Repertory Company, 2023
Director:  Lavina Jadhwani
Technical Director:  Laura Pates
Scenic Design:  Dahlia Al-Habieli
Lighting Design:  Sarah Hughey
​​​​​​​Show Stills:  Huth Photo
Drafting Packet
Paperwork

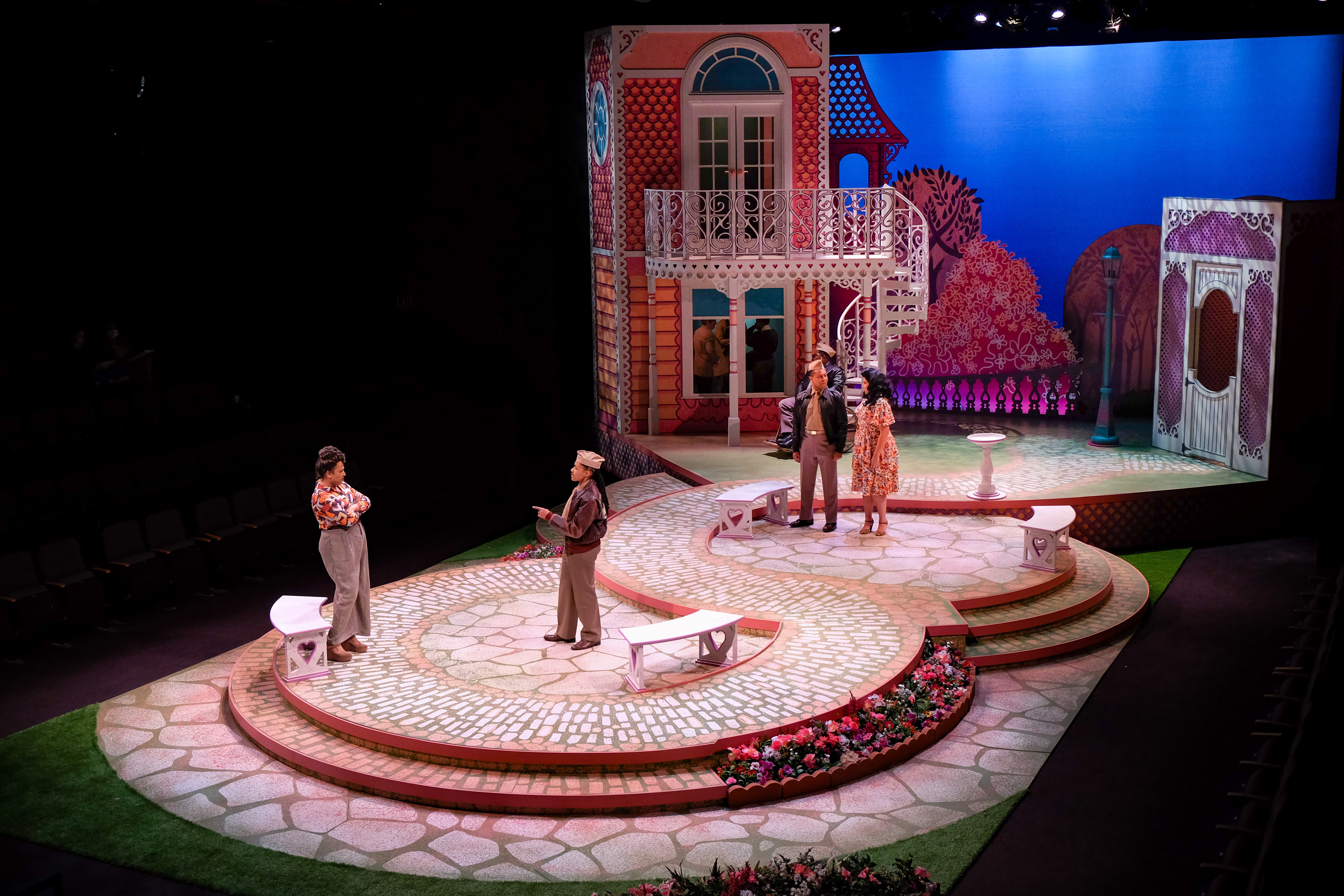

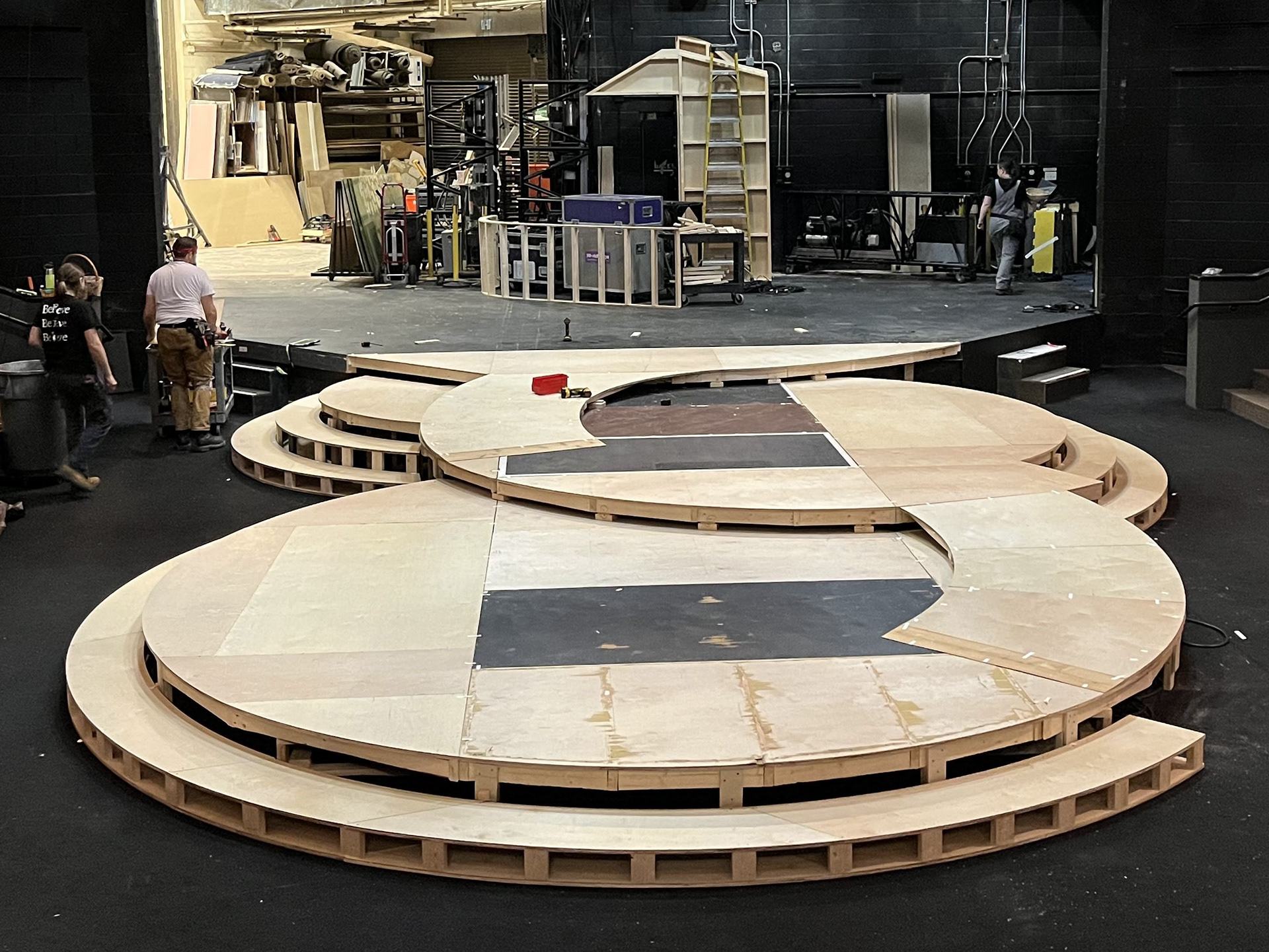

Drafting for platform load-in linked above.

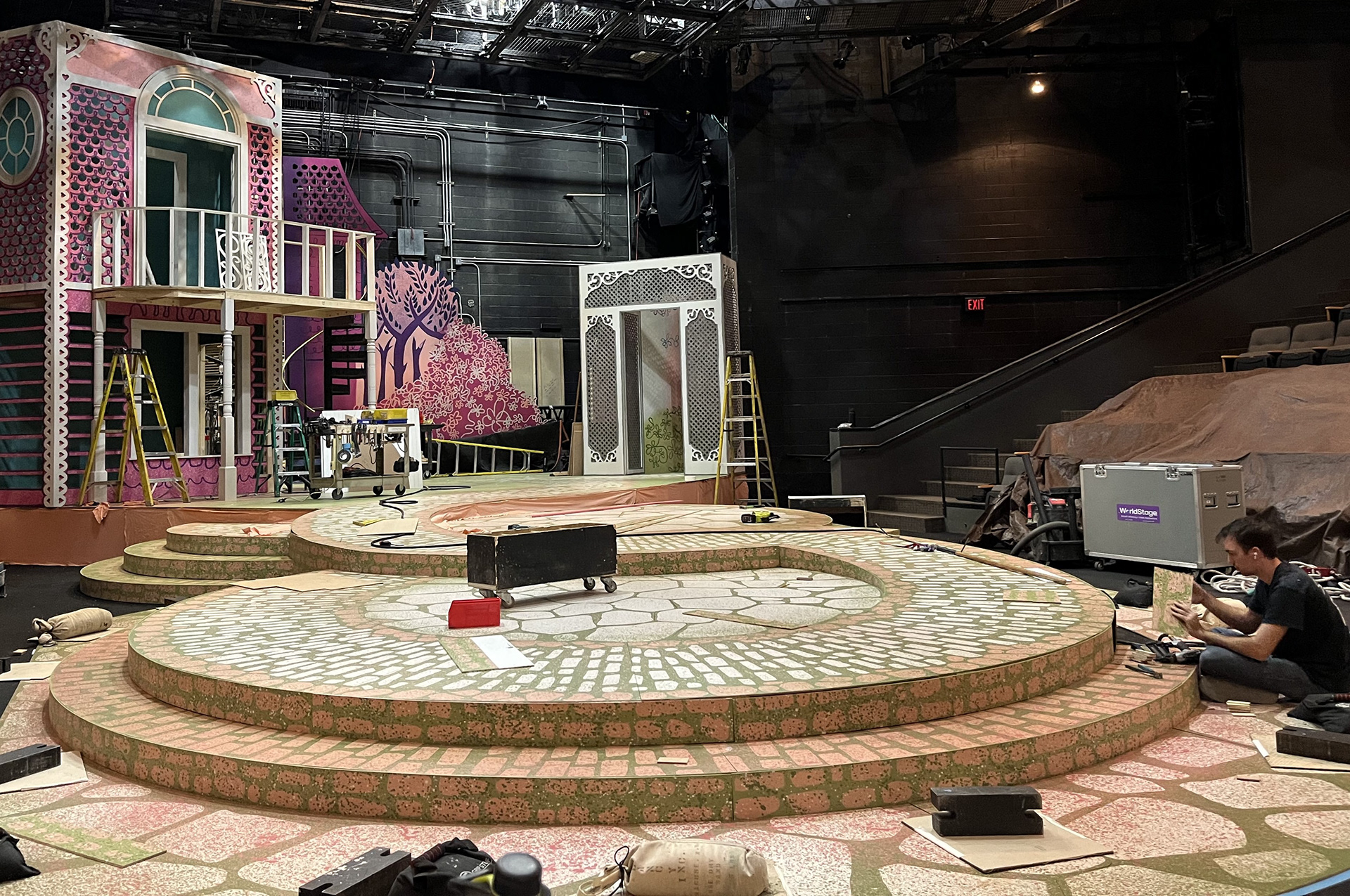

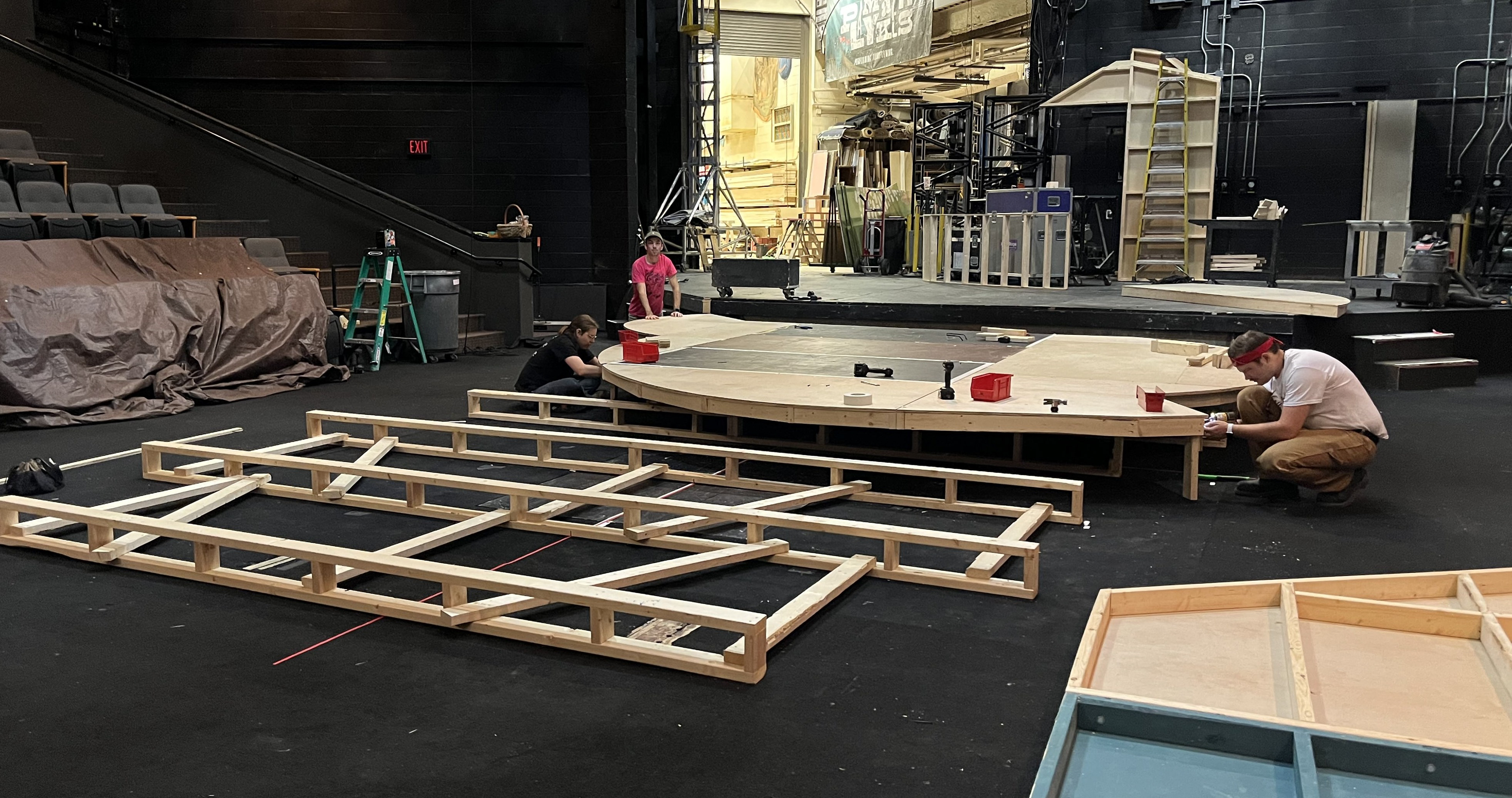

Drafting for platform load-in linked above.

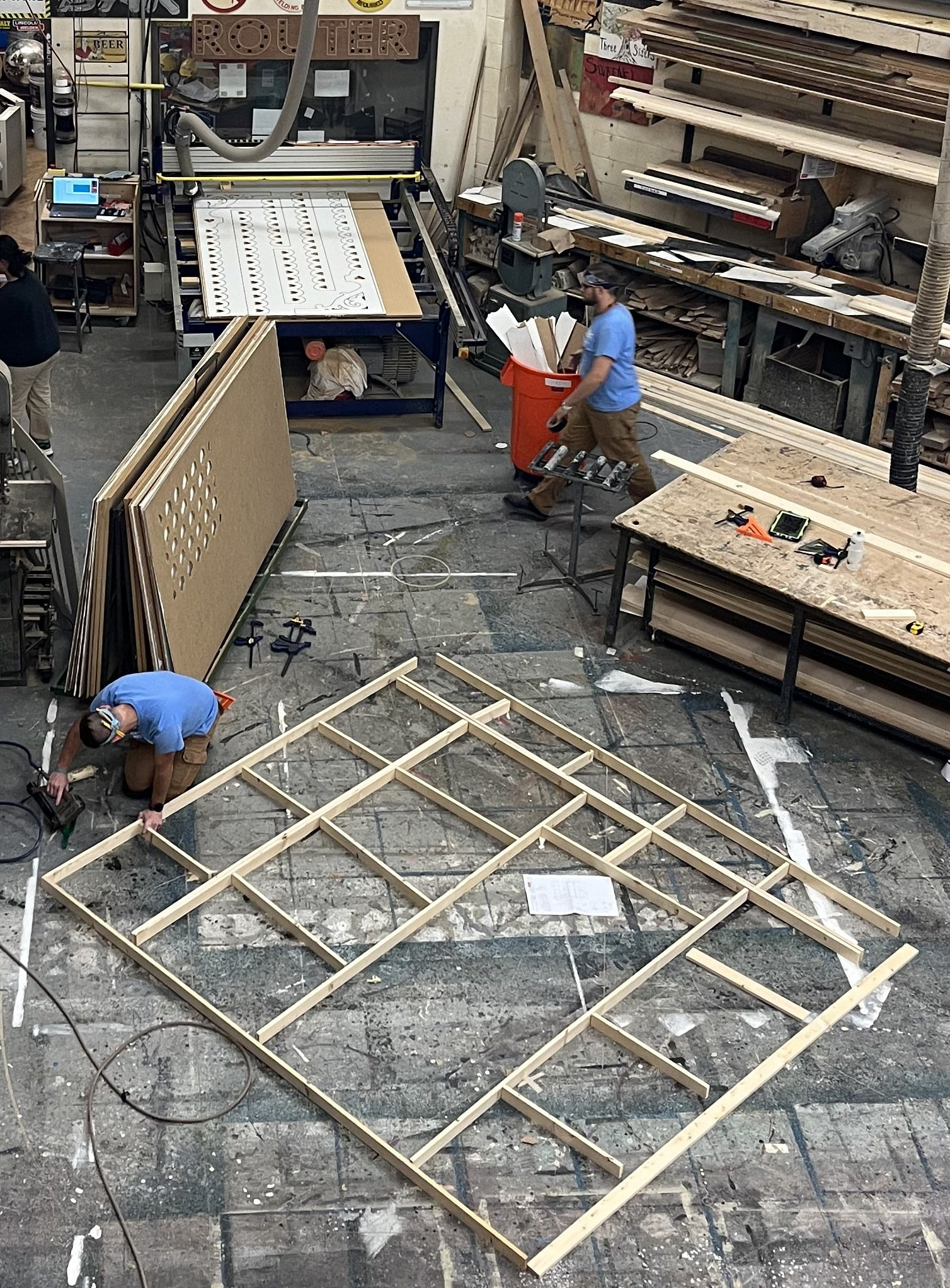

Stairs were constructed with "legs" on face to ensure ease of facing installation on the curve. (Drafting linked above)
Stairs were constructed with "legs" on face to ensure ease of facing installation on the curve. (Drafting linked above)
Stairs were constructed with "legs" on face to ensure ease of facing installation on the curve. (Drafting linked above)
Stairs were constructed with "legs" on face to ensure ease of facing installation on the curve. (Drafting linked above)

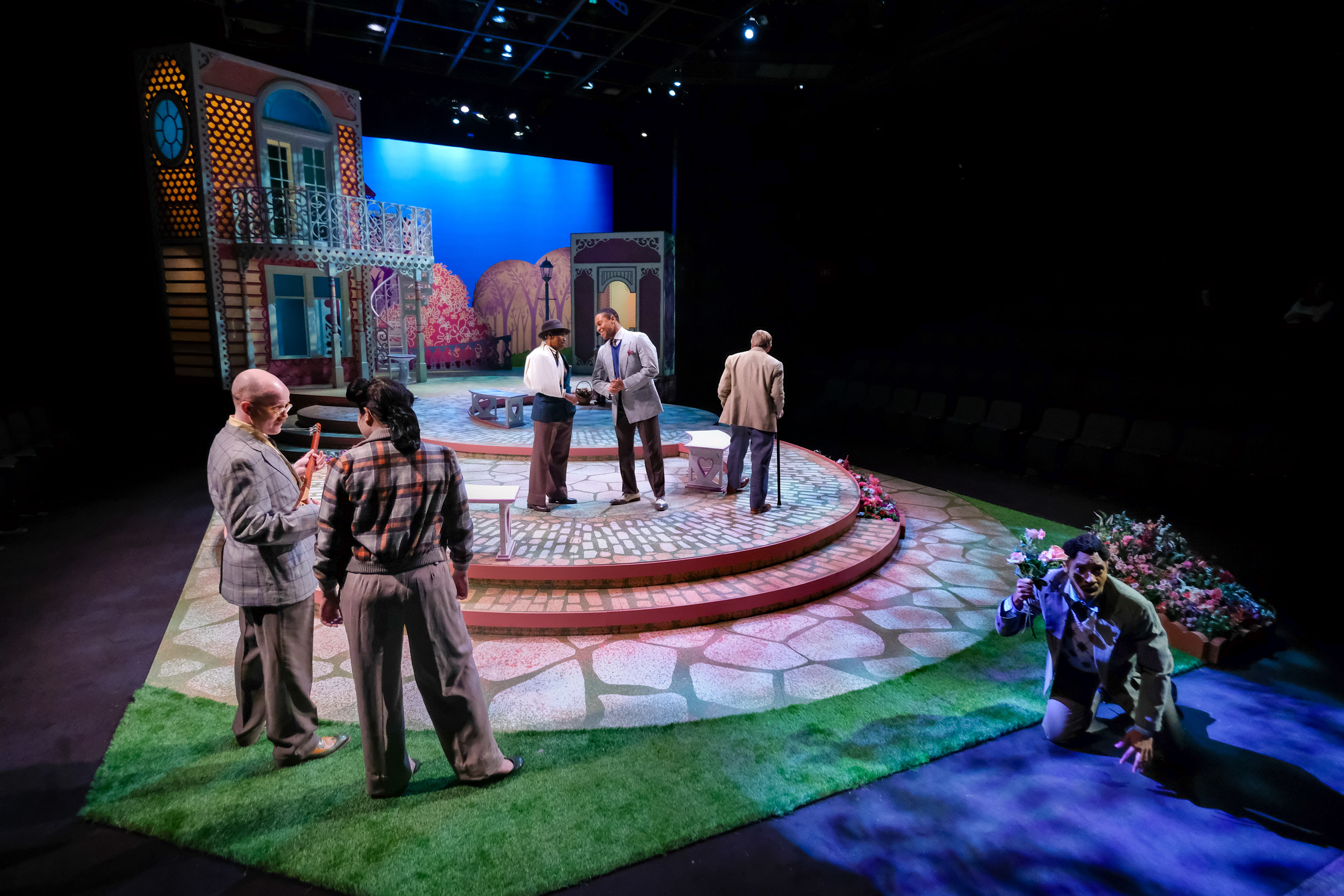

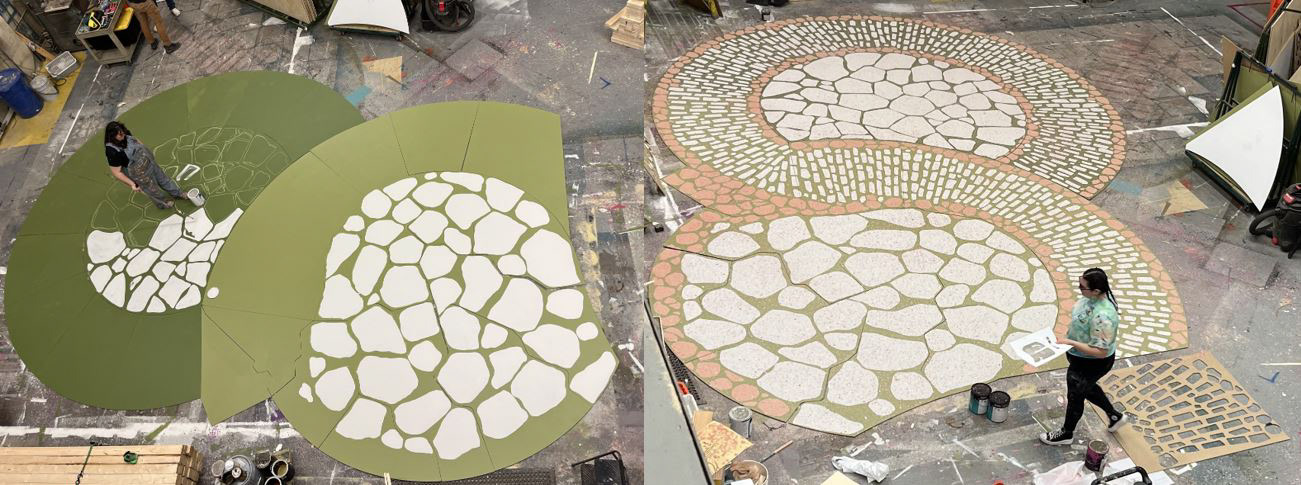

CNC files for the flooring were created to help hide the seams by placing them in the grout lines of the stonework. The grout lines were traced in AutoCAD from the paint elevatyions, then the seams were utilized as a reference when drawing in the stonework. For the bricks, stencils were CNC-ed to create a repeating pattern. (Drafting linked above)
CNC files for the flooring were created to help hide the seams by placing them in the grout lines of the stonework. The grout lines were traced in AutoCAD from the paint elevatyions, then the seams were utilized as a reference when drawing in the stonework. For the bricks, stencils were CNC-ed to create a repeating pattern. (Drafting linked above)
